Teaching and presenting
Let students and customers follow your work on a screen, without crowding around your bench. This style of camera mount fo r microscope, with built-in focusing block, is an ideal sol ution for filming your work or sharing your process on a monitor. The position of the camera behind the microscope gives a microscope-style view.
![]()

Uncompromised quality has nothing to hide.
In the box
Microscope Head HolderFocusing BlockMacro LensUniversal Camera Holder

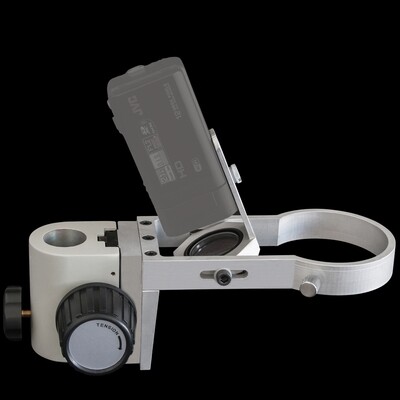

The Camera Mount is a Focusing Block with its own version of the Microscope Head Holder, made to hold both your microscope head and your camera.
SKU MC.09
Good to know before you order
Buying it with the JURA stand for MEIJI? Choose the camera mount option on the stand: it brings its own focusing block and head holder, so you don’t pay for them twice
Using a microscope other than the MEIJI EMZ-10? Fill in its model and head diameter in the order field, so we fit the camera mount to your head (Ø 84 mm, or up to Ø 82 mm)
Fits the JURA Microscope Stand. Using it on another stand? The pivot of that stand may be 30 mm at most. Is it much smaller? As a small service, we can print an adapter sleeve to match it – just tell us the pivot diameter when you order. Printed parts have tolerances, so we cannot guarantee the fit on a stand of another brand
Not compatible with the Zeiss Stemi 305 (its head is too large for the camera to sit behind it) and the Leica A60
Camera and microscope not included
We fit to the measurements you give us; tolerance and measurement differences in third-party microscopes and cameras are outside our responsibility
Recommended cameras
Panasonic HC-VX3
4K camcorder · not included
Sony FDR-AX700
4K camcorder · not included
JVC Everio GZ-RY980HE
4K camcorder · not included
These are the cameras we have tested with our mount. JURA keeps developing, so ask us about other cameras before you order. Tolerance and measurement differences in third-party cameras are outside our responsibility.
At the bench
Microscope-style view
The camera sits behind the microscope, so viewers see what you see.
Independent of your zoom
Zooming the microscope in or out does not change the camera image.
Built-in focusing block
Holds the microscope head and the camera in one unit.
Head diameter Ø 84 mm
Also available for microscope heads up to Ø 82 mm.
Universal camera holder
With macro lens, for a sharp image on screen.
For Leica
Fitting ring available as an option (not for the A60).
The essence
Why the camera mount matters. Zooming the microscope in or out does not change the camera image. You set the microscope for your own work, and the camera separately for what your students or customers need to see, for example a wider field of view. You work at the magnification you need; they keep a calm, clear overview on the screen.
Options
Fitting ring for Leica (not for A60)
Take it to the next level
Order the camera mount as a set with the stand, or with the stand and the EMZ-10, and save. Choose the set on the stand or microscope page, right above Add to Bag.
MC.08.01 · with camera mount option
Your microscope steady at exactly your height, and out of the way when you don’t need it.
Heavy stainless steel, with focusing block and head holder. Bench-wall or bench-top mounting.
MC.MJ.HD · our microscope of choice
Sharp, bright 3D vision at a natural 110 mm working distance.
Made in Japan, in JURA black, with eyepieces, protective glass and LED ring light.
